Parameters | 4 096 (HTP/LTP) |
---|---|
Parameters Mode2 | 2 048 (HTP/LTP) |
Operating voltage/ Supply voltage | 100-240V, 50/60Hz PoE (IEEE802.3af / 48V DC) |
Power | max. 15VA |
Operating Temperature | -10 °C up to 50 °C / 14 °F up to 122 °F |
Dimensions | 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height) |
Net weight | 1 kg / 3 lbs |

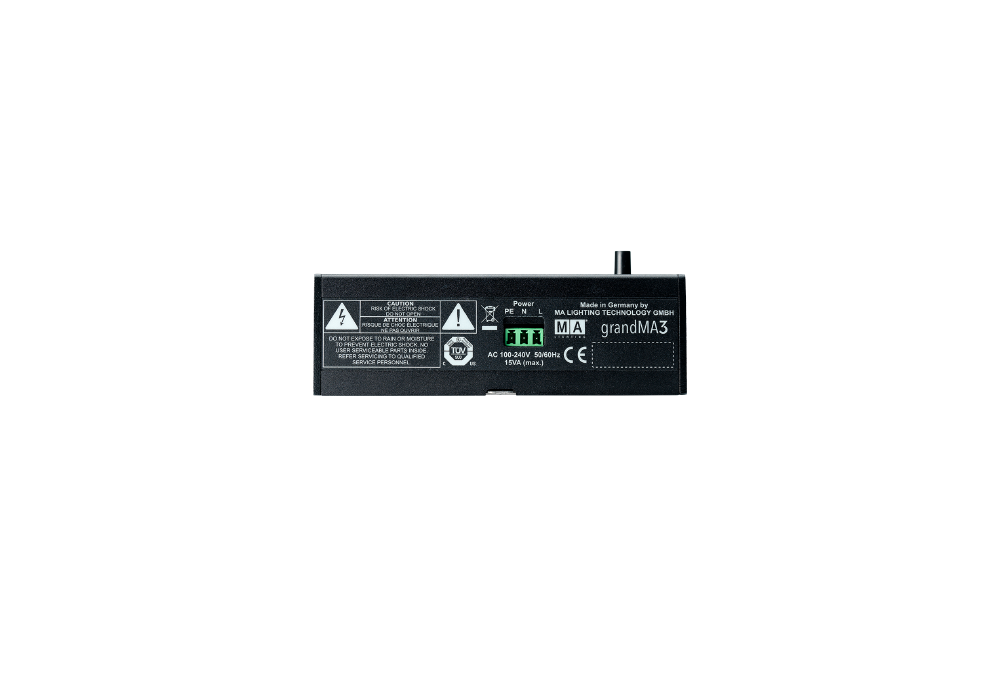

Connectors | 1 x Power (3pin PCB connector) 1 x Ethernet/RJ45 8 x DMX512-A Out (3pin PCB connector) 1 x USB 2.0 (type A) |
