grandMA3 onPC command wing XT
Thương hiệu : MA Lighting
- Real-time control for 4 096 parameters in combination with grandMA3 onPC software – pre-installed on built-in MA motherboard
- Command section same as grandMA3 onPC command wing
- 29 rotary RGB backlit encoder
- 5 dual encoders
- 10 motorized 60mm faders
- 40 separate playbacks
- 16 assignable x-keys
- 2 motorized A/B faders 100mm
- 1 Level-Wheel
- Individually backlit and dimmable silent (clickless) keys
| Parameters | 4 096 (HTP/LTP) |
|---|---|
| Parameters Mode2 | not applicable (no Mode2) |
| Operating voltage/ Supply voltage | 100-240V, 50/60Hz |
| Power | max. 100VA |
| Operating Temperature | 0 °C up to 40 °C / 32 °F up to 104 °F |
| Dimensions | 620 x 427 x 112 mm / 25 x 17 x 5 in (width x depth x height) |
| Net weight | 12 kg / 27 lbs |

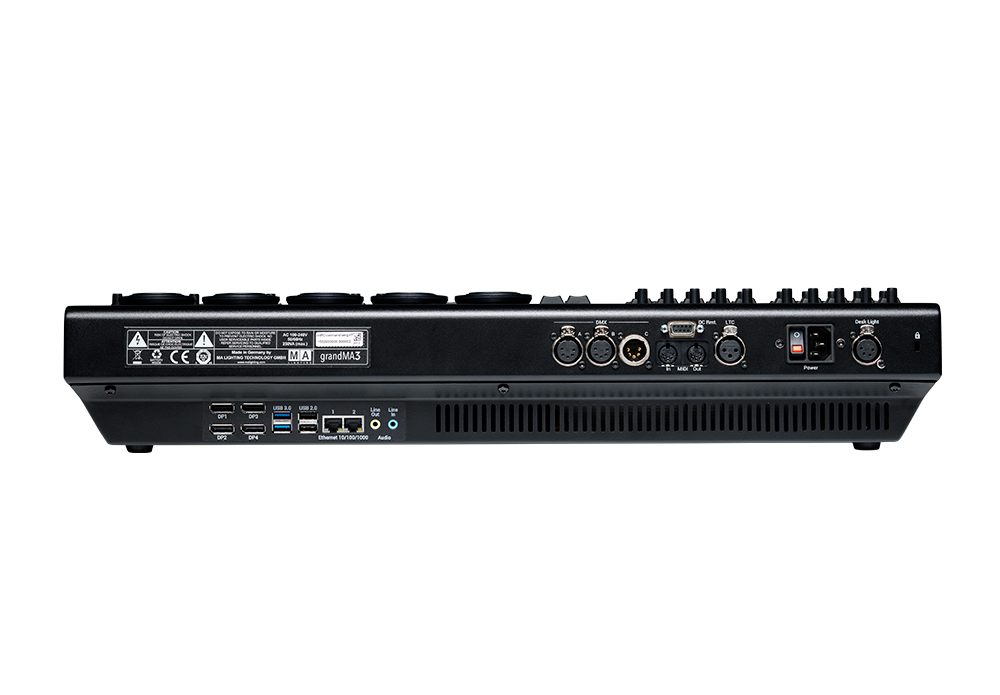

| Connectors | 1 x IEC-60320 C14 cord 2 x RJ45 2 x DMX512-A Out (5pin XLR female) 1 x DMX512-A In (5pin XLR male) 1 x MIDI In (5pin DIN female) 1 x MIDI Out (5pin DIN female) 1 x Linear Timecode In (3pin XLR female) 1 x Audio In (mini jack 3.5mm) 1 x Audio Out (mini jack 3.5mm) 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control 4 x DisplayPort 1.2 for external screens 2 x USB 2.0 (type A) 2 x USB 3.0 (type A) 1 x LED desk light (4pin XLR female) |
