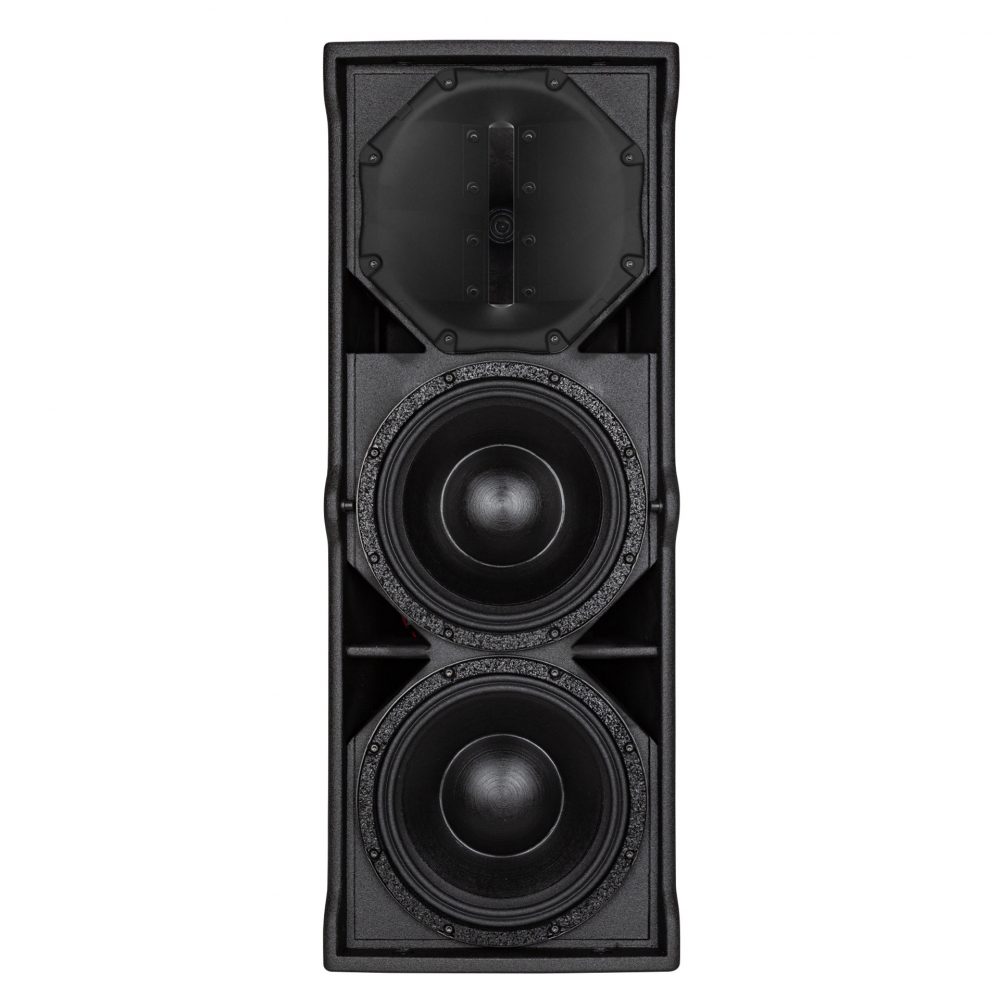

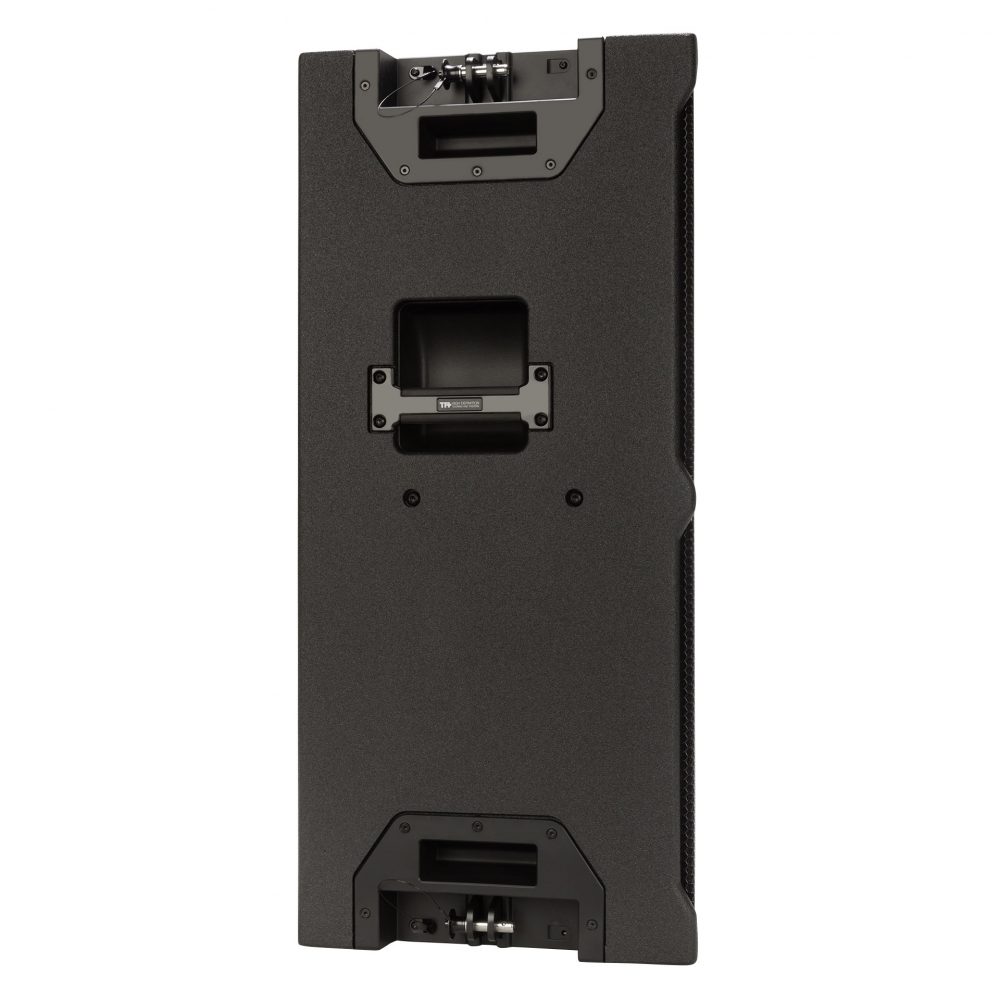

TTL 4-A
Thương hiệu : RCF
- 135 dB max SPL
- 100° x 25° coverage
- LF 2 x 10’’ neodymium woofer, 3.0” voice coil
- HF 1.5” Nd comp. driver 4.0” voice coil
- 2 x Class-D amplifiers, 1600 Watt RMS total power
- 45 – 20.000 Hz frequency range
- RDNet on board
- FiRPHASE 0° linear phase
| Acoustical specifications |
FREQUENCY RESPONSE:
45Hz ÷ 20000 Hz
HORIZONTAL COVERAGE ANGLE:
100°
|
MAX SPL @ 1M:
135 dB
VERTICAL COVERAGE ANGLE:
25°
|
| Transducers |
COMPRESSION DRIVER:
1 x 1.5” neo, 4.0” v.c
|
WOOFER:
2 x 10” neo, 3.0” v.c
|
| Power section |
TOTAL POWER:
3200 W Peak, 1600 W RMS
HIGH FREQUENCIES:
1200 W Peak, 600 W RMS
|
LOW FREQUENCIES:
2000 W Peak, 1000 W RMS
COOLING:
Convection
CONNECTIONS:
VDE
|
| Physical specifications |
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array fittings, 2xM10 on the top, 2xM8
HANDLES:
2 Side, 2 rear
|
POLE MOUNT/CAP:
Yes
COLOR:
Black
|
