NX 45-A
Thương hiệu : RCF
- 1400 W 2-way class-D amplifier
- 133 dB SPL Max
- 45 – 20000 Hz Frequency Range
- 90° x 50° constant directivity coverage

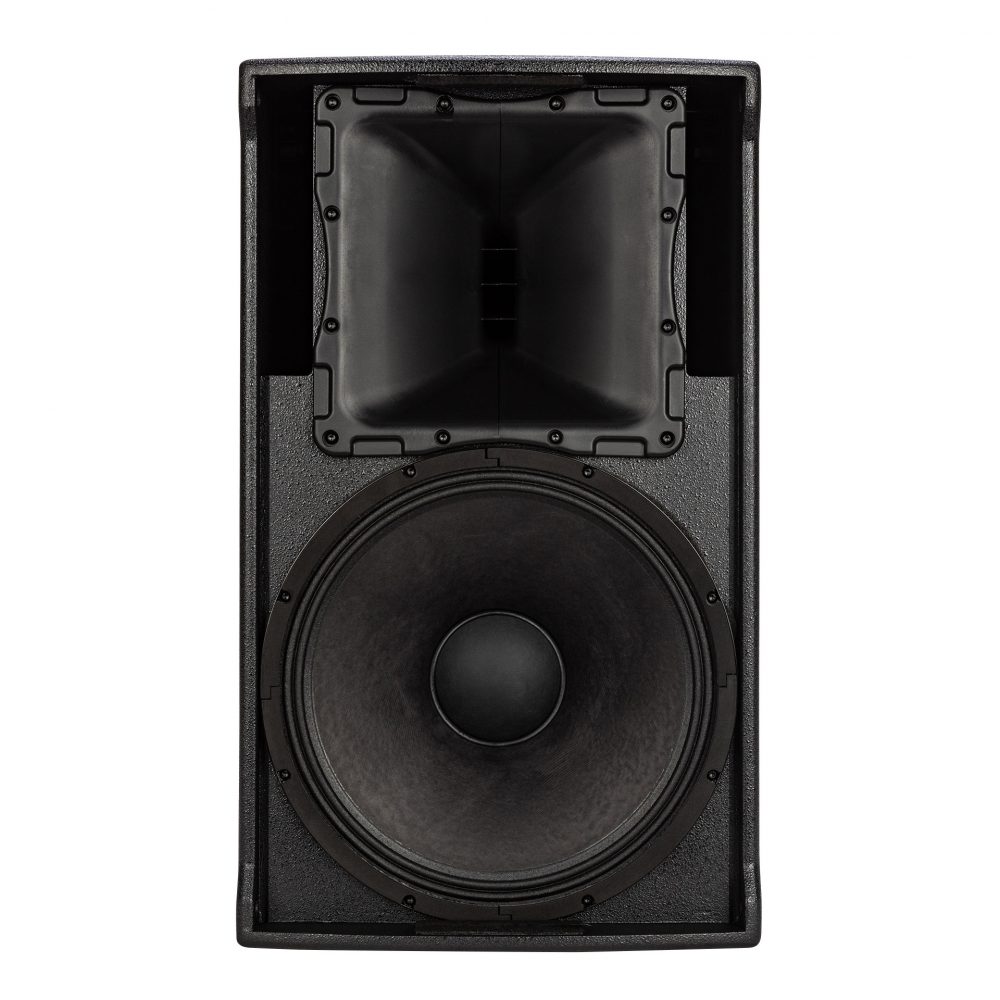

- 15″ neodymium woofer, 3.5″ voice coil
- Horn loaded 4.0”neodymium c. driver
- Multiple rigging points
| Acoustical specifications |
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
HORIZONTAL COVERAGE ANGLE:
90°
|
MAX SPL @ 1M:
133 dB
VERTICAL COVERAGE ANGLE:
50°
|
| Transducers |
COMPRESSION DRIVER:
1.4” neo, 4.0” v.c
|
WOOFER:
15” neo, 3.5” v.c
|
| Power section |
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
|
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
|
| Physical specifications |
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
5 x M10, 4 x quick lock
HANDLES:
2 Side
|
GRILLE:
Steel
POLE MOUNT/CAP:
Yes
COLOR:
Black
|
