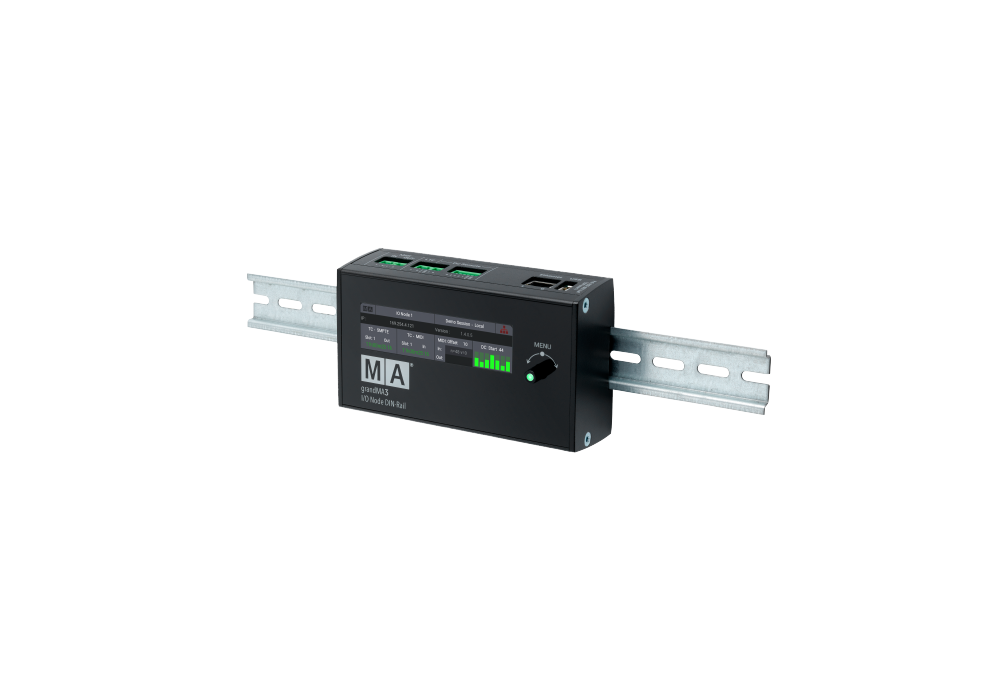

The grandMA3 I/O Node DIN-Rail comes in the same housing as a grandMA3 xPort Node DIN-Rail.

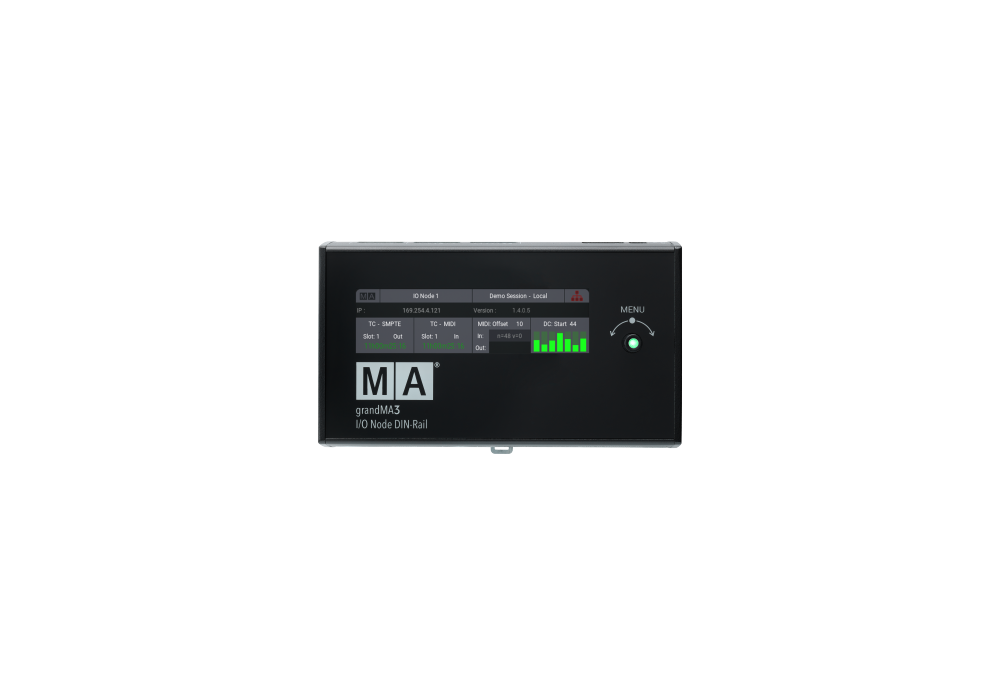

The display shows the status of all input and output signals. Just add the grandMA3 I/O Node DIN-Rail as a Session Member and it is ready to go.
It has never been easier to integrate external signal flows into the MA-Net workflow. Once a grandMA3 I/O Node DIN-Rail receives MIDI, Timecode or DC Remote signals, these are available immediately throughout the grandMA3 lighting control system, and can be used in any grandMA3 onPC or console. The same is true for transmitting MIDI or Timecode signals.
|Operating voltage/ Supply voltage||100-240V, 50/60Hz
PoE (IEEE802.3af / 48V DC)
|Operating Temperature||-10 °C up to 50 °C / 14 °F up to 122 °F|
|Dimensions||150 x 50 x 90 mm / 6 x 2 x 4 in
(width x depth x height)
|Net weight||1 kg / 3 lbs|

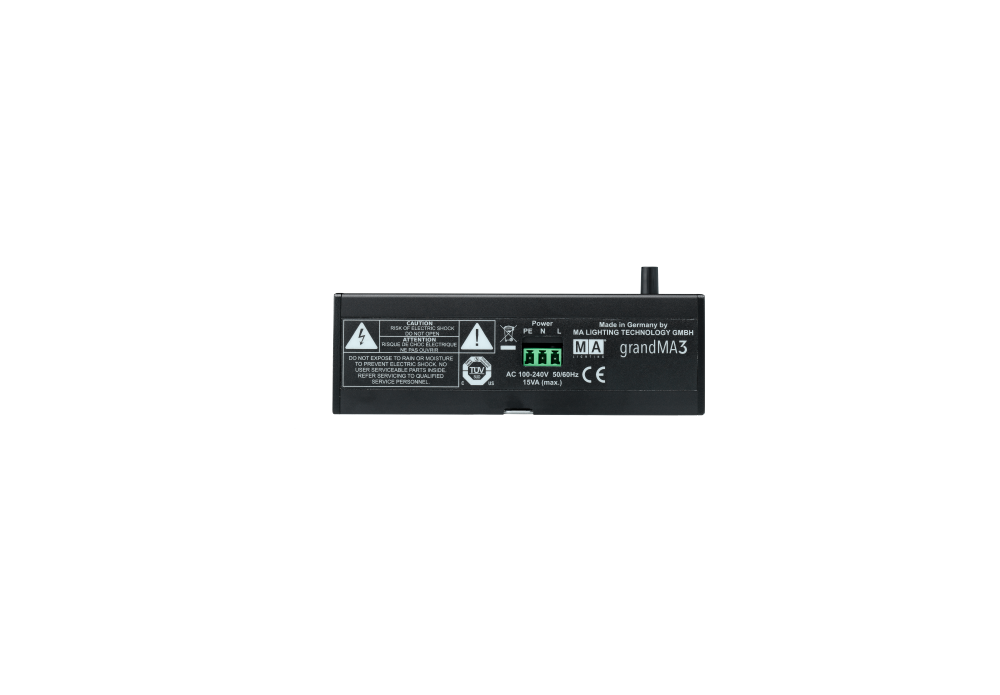

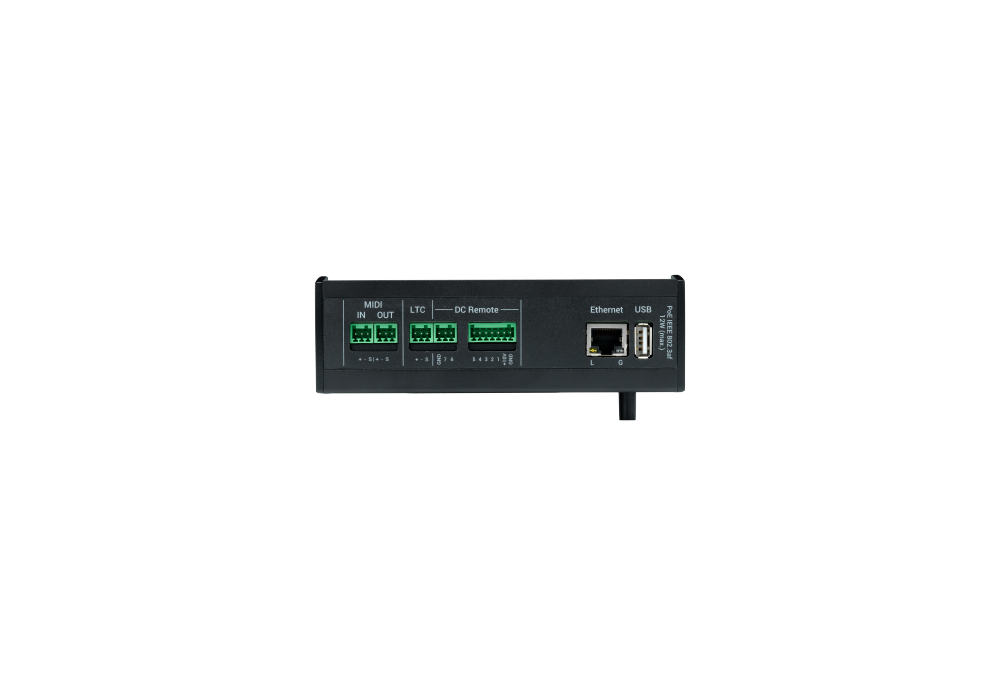

|Connectors||1 x Power (3pin PCB connector)
1 x Ethernet/RJ45
1 x MIDI In (3pin PCB connector)
1 x MIDI Out (3pin PCB connector)
1 x Linear Timecode (3pin PCB connector)
1 x GPI General Purpose Interface (3pin and 7pin PCB connector) for remote control
1 x USB 2.0 (type A)
